RainTEC Center Pivot Components

Home > Products > Water Distribution Components > Underground Pipe >
"Z" Pipe

.
. Male or Female Top End.
. Sizes: 6", 8", or 10" - IPS or PIP
. Nipples and Couplings added as requested.
. Standard Depths: 42", 48", and 60".
. Other depths can be custom made.

Z Pipe
NI Part # Size
904XX6 6" Z Pipe
904XX8 8" Z Pipe
904XX10 10" Z Pipe

Optional Nipples
NI Part # Size
79324-5 2" Nipple, NPT, Half
79310-5 3" Nipple, NPT, Half
79317-5 4" Nipple, NPT, Half


. Epoxy powder coating greatly prolongs the life of steel fittings.
. Tough epoxy finish resists corrosion.
. Coating will not crack from extreme temperature changes.
. Almost impossible to chip.

Ordering Details for Z Pipe

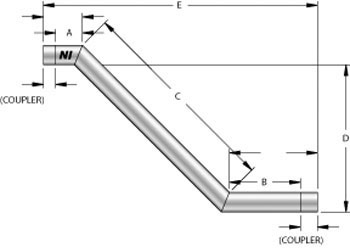

Fill in the dimensions for the Z Pipe needed according to the above diagram.


Please contact our sales office with your specifications.
Location
per diagram
Dimensions
in inches

B

D*



 * Trench Depth.



Z-Pipe Ordering Details
