RainTEC Center Pivot Components

Home > Products > Sprinklers > Sprays >
Senninger LDN®


LDN Single Spray Head
92833

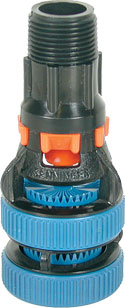

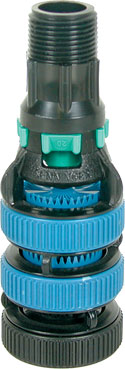

LDN Double Spray Head 92834 LDN Triple Spray Head 92835

Features and Benefits of LDN – Low-Drift Nozzle

• Extremely efficient water application with minimized losses to wind drift, evaporation, and runoff.
• Unique multiple deflector pad design allows it to produce uniform sized droplets through the wide range of nozzle flows found on center pivots.
• Rugged design for traveling through tall crops.
• Low pressure operation — 6 to 15 psi.
• Chemigation Pads produce an upward spray under the crop canopy, for washing or applying pesticide. Corn chem pad: 58º upward throw; cotton chem pad: 15º - 30º multi-level upward throw.
• Bubbler Pad applies water in a gentle, aerated pattern ideal for direct-to-furrow (LEPA style) irrigation.
• Hose Barb Adapter along with a drag hose allows water application directly into the furrow. The adapter snaps right onto the LDN.

Senninger Complete LDNs®
Includes nozzle; specify desired size
NI Part Number
Description
w/ 3/4" M NPT Base w/ 3/4" Barb Base
92833 92833-B LDN Single, Complete
92834 92834-B LDN Double, Complete
92835 92835-B LDN Triple, Complete

LDN Options


Bubbler Pad
(Must be used in conjunction with LDN weight.)

LDN Weight

LDN Options
NI Part # Description
51055 3/4 lb. LDN Weight
51060 1 lb. LDN Weight
11086 LDN w/ Drag Hose Adapter
88089 Bubbler Pad, Beige, nozzles #5-24
88072 Corn Chem Pad, CM1, Red, nozzles #5-9
88078 Corn Chem Pad, CM2, Maroon, nozzles #10-24
880103 Cotton Chem Pad, CT-L, White, nozzles #5-24

LDN Components

LDN Components
NI Part # Description
16006 Adapter, 3/4" M NPT
16006-B Adapter, Hose Barb
795146 Nozzle
145191 Body
88071 Single Spray Plate
88074 Double Spray Plate
88090 Triple Spray Plate

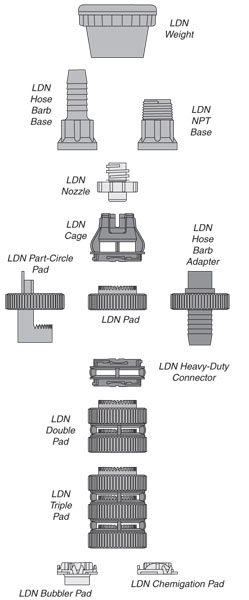

LDN Components and Options











Senninger LDN Components
Senninger LDN Options
Weights, Drag Hose Adapter, etc.
Senninger LDN Flow Chart
Performance Data.
Senninger LDN Drop Configurations
Examples of Configurations.
Drop Components
Hose, Fittings, etc.
Senninger Goosenecks & Truss Rod Hose Slings
.
Senninger Pressure Regulators
PSR and PMR Models.
Gauges
Pressure Gauges.
Senninger Pivot-Master® Irrigation Products
Selection Chart.
Sprinkler Chart Data Form
For ordering Sprinkler Packages.
