Home > Products > Structural Components > Pivot Points >
Pivot Point Packages
>> Download PDF of this page.

NI manufactures a variety of center pivot points to suit a wide range of applications and to adapt to many systems. All pivot structures are made of galvanized steel.

The pivot point packages listed include: all bolts, legs, braces, J-pipe, triple-lip riser gasket, bottom elbow with drain.

Items not included in the above packages, but sold separately: collector ring, anchors, main control panel, option rings, and pivot flex joints.

Available upon request is a Pivot Pad Dimensions and Guide that includes recommended material list.

Pivot Point Packages
NI Part # Description
93301 High Profile Pivot Point, 8" (standard height)
93301-LP Low Profile Pivot Point, 8"
93301-T Towable Pivot Point, 8" (standard height)
93302 High Profile Pivot Point, 6-5/8" (standard height)
93302-LP Low Profile Pivot Point, 6-5/8"
93302-T Towable Pivot Point, 6-5/8" (standard height)

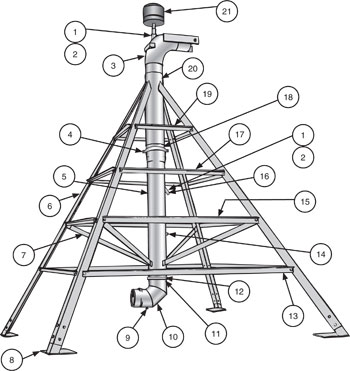

Pivot Point Package Components
Item NI Part # Qty Page Ref. Description
1 82063 2 127 J-Tube Nut
2 570173 2 127 J-Tube Gasket
3 515200 1 -- Elbow, Top (for Pkg 93301)
515200-658 1 -- Elbow, Top (for Pkg 93302)
4 330113G 2 -- Half-Clamp
5 86089 1 -- Riser
6 74005 4 -- Leg
7 22508 4 -- Brace
8 10611 4 -- Base
9 49002 1 123 Drain
10 51539-H 1 -- Elbow
11 57046 1 148 8" Round Back Gasket
12 33007 1 138 Clamp, Ring Lock
13 22512 4 -- Angle
14 89013 1 100 Plug, 3/4" MNPT
15 22511 4 -- Angle
16 95818 1 -- J-Tube
17 22510 4 -- Angle
18 570140 1 127 Triple-Lip Gasket, 8"
19 22509 4 -- Angle
20 24081 1 -- Bushing
21 898XX 1 50 Collector Ring (not included in pivot point package)

The items listed are included in the Pivot Point Packages 93301 and 93302. Other packages include similar items.
(NOTE: The collector ring is sold separately and not part of the pivot point packages.)





:: Related Items ::
Collector Rings
Heavy-Duty Collector Rings.
Main Control Panels
Available with a variety of options.
Anchors
Contact us.
Option Rings
Contact us.
Pivot Flex Joints
For a variety of brands.
Boot Hose Kits
Hose and T-bolt clamps.
Bulk Boot Hose and T-Bolt Clamps
Hose cut to specified length.
Available Upon Request-
Pivot Pad Dimensions & Guide
Recommended Mateial List.
