RainTEC Center Pivot Components

Home > Products > Controls > NI Alignment Controls >
NI Lindsay Type Tower Control Boxes
UL Listed

NIL Stall Timer Tower Box
22057

NIL Intermediate Tower Box
22056

NIL Last Tower Box
22058

NIL Type Tower Control Boxes
NI Part # Description
22056 Box, Control, Intermediate
22057 Box, Control, Stall
22058 Box, Control, Last Tower
22061 Box, Control, Booster*, w/ Pressure Switch
22054 Box, Control, Booster*, w/o pressure switch
Includes Complete UL Listed Control Box. (No linkage, mounts, or overload protection.)


* For more details on the NIL booster pump control boxes, see Booster Pump Control Boxes.

Options:
. Mounting hardware and actuator, bolt-on or weld-on.
. Overload relay protection (wide range of sizes for motors of different horsepower).

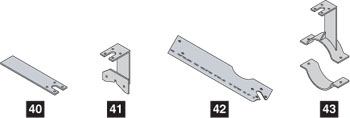

NIL Tower Box Mounts

NIL Tower Box Mounts
Item NI Part # Description
40 79209 Mount, Weld-On
41 79201 Mount, Bolt-On
42 79208 Mount, Bolt-On
43 792250 Mount Pkg., Bolt-On

Linkage for NIL Type Boxes


Linkage for NIL Type Boxes
Item NI Part# Inter Stall Last Description
Qty Qty Qty
16 71002 1 1 -- Joint, Ball, Quick Disconnect
17 89906 1 1 -- Rod, Linkage, 6", short
- 89934 1 1 -- Rod, Linkage, 10"
- 89904 1 1 -- Rod, Linkage, 13"
- 89900 1 1 -- Rod, Linkage, 16"
- 89937 1 1   Rod, Linkage, 24"
18 71001 1 1 -- Joint, Swivel, Adjuster, 1/2" Stem
- 71001-L 1 1 -- Joint, Swivel, Adjuster, 3/4" Stem
19 82010 2 2 -- Nut, Hex, 5/16" NF
- 82000 2 2 -- Nut, Hex, 1/4" NF
20 39006 1 1 1 Connector, Cord, 1/2", w/ Jam Nut
21 39052 2 2 1 Connector, Cord, 3/4", w/ Jam Nut
- 792XX       Mount, Actuator Arm


NIL Controls and parts can be used as direct replacements for Lindsay style boxes.
