RainTEC Center Pivot Components

Home > Products > Parts Breakdowns > Tower Control Box Parts

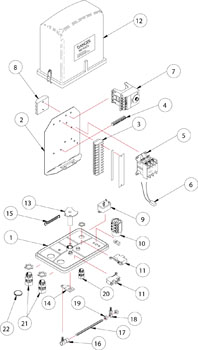

Replacement Parts for NIL Type Control Boxes --22056, 22057, 22058, 22061, 22054


Item NI Part# Inter
22056
Stall
22057
Last
22058
BP*
22061
Description
Qty Qty Qty Qty.
1 16001 1 1 1 1 Base
2 88007 1 1 1 1 Plate, Vertical Mount
3 938301 1 1 1 1 Terminal Strip, 11-Pole--(alternate 93801 or 93803, 12-pole)
  91043 1 1 1 1 Screw, 8-32 x 3/4, Self-Tapping
4 77005 1 1 1 1 Lug, Ground Strip
  91043 2 2 2 2 Screw, 8-32 x 3/4, Self-Tapping
5 40051 1 1 1 -- Contactor, 3-Pole
  91042 2 2 2 -- Screw, 8-32 x 3/8, Self-Tapping
6 93402 1 1 1 -- Suppressor, Arc
7 94403 -- 1 -- -- Timer, Stall, 5 Min. OFF
  91053 -- 2 -- -- Screw, 8-32 x 1/2, Self-Tapping
8 56002 1 1 1 -- Fuseholder, 3-Pole, 30A
(used on older models only)
9 89630 -- -- 1 1 Relay, Last Tower
  91042 -- -- 2 2 Screw, 8-32 x 3/8, Self-Tapping
10 93601 1 1 1 1 Switch, Disconnect, 6-Pole
11 936117 2 2 2 -- Switch
  91050 4 4 -- -- Screw, 6-32 x 1", Self-Tapping
12 90612 1 1 1 1 Shield, Tower Box w/ Latches
  73002 2 2 2 2 Latch only
13 26005 1 1 -- -- Cam, Control
14 12001 1 1 -- -- Arm, Cam, Control
15 92601 1 1 -- -- Spring
16 71002 1 1 -- -- Joint, Ball, Quick Disconnect
17 89906 1 1 -- -- Rod, Linkage, 6" (short)
- 89900 1 1 -- -- Optional Control Rod, 16" Long
18 71001 1 1 -- -- Joint, Swivel, Adjuster
-

71001

- L

1 1 -- -- Joint, Swivel, Long Stud
19 82010 2 2 -- -- Nut, Hex, 5/16 - 24 UNF
20 39006 1 1 1 1 Connector, Cord, 1/2" w/ Jam Nut
21 39052 2 2 1 1 Connector, Cord, 3/4"
(.7 - .8 dia.)
22 89021 -- -- 1 -- Plug, Dome
23 40009 -- -- -- 1 Contactor, Reversing, 4-Pole
91042 -- -- -- 2 Screw, 8-32 x 3/8, Self-Tapping
24 93643 -- -- -- 1 Switch, Pressure **

* Booster Pump Control Boxes: 22061 w/ pressure switch; 22054 w/o pressure switch.
** Item 24 is used in 22061 and not in 22054.


 NI controls and parts can be used as direct replacements for Lindsay / Zimmatic style boxes.



NIL Intermediate Tower Box -- 22056



NIL Stall Timer Tower Box -- 22057



NIL Last Tower Box -- 22058
