| Vertical Hollow Shaft Motors |
|

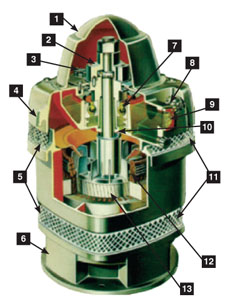

Outstanding Features
1. Lightweight
Top Cover.
2. Coupling readily accessible.
3. Lockbar holds shaft during adjustments.
4. Lifting Lugs positioned for stability.
5. Protected Air Openings exceed
NEMA WPI requirements.
6. Precision Machined Mounting Base,
ample clearance for mounting bolt installation.
7. Rugged Bearing withstands heavy
load thrusts.
8. Large Plug simplifies oil fills.
9. Sight Gauge Window for quick oil
level reading.
10. Metered Oil Flow minimizes churning.
11. Dual Air Flow system for uniform
cooling of motor top and bottom.
12. Windings protected by new, synthetic
materials.
13. Solid Die Cast Rotor with integral
fan blades. |
 |
. Designed for deep well turbine pump applications.
. Carries thrust load of pump and head of water.
. Easily accessible top coupling permits vertical adjustment of
pump impellers. |
|
| US Vertical Hollow Shaft Motors
- 1800 RPM - 3 Phase |
| NI Part # |
HP |
Model No. |
Frame |
Type* |
Volts |
Base Dia.**, Inches |
C Plug Height |
Eff. |
Weight |
| 790102 |
5 |
6968 |
184TP |
TU |
230 / 460 |
10" |
17-9/16 |
82.5 |
120 |
| 790103 |
7-1/2 |
J145 |
213TP |
TU |
230 / 460 |
10" |
17-9/16 |
84.0 |
190 |
| 790104 |
10 |
J146 |
215TP |
TU |
230 / 460 |
10" |
17-9/16 |
85.5 |
190 |
| 790105 |
15 |
BF30 |
254TP |
AU |
230 / 460 |
10" |
23-3/8 |
89.5 |
265 |
| 790105-1 |
15 |
BF31 |
254TPA |
AU |
230 / 460 |
16-1/2" |
23-3/8 |
89.5 |
265 |
| 790106 |
20 |
BF33 |
256TPH |
AU |
230 / 460 |
12" |
23-3/8 |
89.5 |
275 |
| 790106-1 |
20 |
BF34 |
256TPA |
AU |
230 / 460 |
16-1/2" |
23-3/8 |
89.5 |
275 |
| 790107 |
25 |
BF37 |
284TPA |
AU |
230 / 460 |
12" |
24-3/4 |
88.5 |
305 |
| 790107-1 |
25 |
BF38 |
284TPH |
AU |
230 / 460 |
16-1/2" |
24-3/4 |
88.5 |
305 |
| 790108 |
30 |
BF41 |
286TPA |
AU |
230 / 460 |
12" |
24-3/4 |
89.5 |
305 |
| 790108-1 |
30 |
BF42 |
286TPH |
AU |
230 / 460 |
16-1/2" |
24-3/4 |
89.5 |
305 |
| 790109 |
40 |
BF47 |
324TPH |
RU |
230 / 460 |
12" |
28-7/32 |
89.5 |
635 |
| 790109-1 |
40 |
BF48 |
324TP |
RU |
230 / 460 |
16-1/2" |
28-7/32 |
89.5 |
635 |
| 790110 |
50 |
BF53 |
326TPH |
RU |
230 / 460 |
12" |
28-7/32 |
89.5 |
635 |
| 790110-1 |
50 |
BF54 |
326TP |
RU |
230 / 460 |
16-1/2" |
28-7/32 |
89.5 |
635 |
| 790111 |
60 |
BF59 |
364TP |
RU |
230 / 460 |
16-1/2" |
31-5/32 |
91.0 |
730 |
| 79076 |
75 |
BF64 |
365TP |
RU |
230 / 460 |
16-1/2" |
31-5/32 |
91.0 |
780 |
| 790100 |
100 |
BF68 |
404TP |
RU |
230 / 460 |
16-1/2" |
36-15/16 |
93.0 |
1110 |
| 790112 |
125 |
BF73 |
405TP |
RU |
460 PWS |
16-1/2" |
36-15/16 |
93.0 |
1150 |
| 790113 |
150 |
BF82 |
H444TP |
RU |
460 PWS |
16-1/2" |
44-25/32 |
92.4 |
1350 |
| 790114s |
200 |
BF82 |
H445TP |
RU |
460 PWS |
16-1/2" |
44-25/32 |
93.6 |
1570 |
** The 16-1/2" base is the most common.
Please measure the base diameter before ordering.
* Type designations:
TU = TEFC Enclosure, Aluminum Housing, Grease Lube Upper Bearing
AU = WP1 Enclosure, Aluminum Housin, Grease Lube Upper Bearing
RU = WP1 Enclosure, Cast Iron Housing, Oil Bath Upper Bearing
|
|
