NI UniversalGearbox
-- 610550 and 610530 |
|
NI Replacement Parts for:

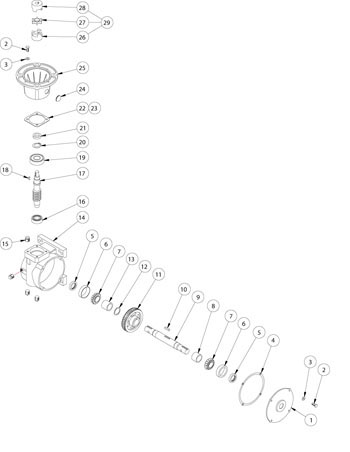

NI Universal Gearbox -- 610550 and 610530 |
| Item |
NI Part # |
Qty |
Description |
| 1 |
270XX |
1 |
Cap, End |
| 2 |
910XX |
8 |
Hex Head Bolt, 5/16" |
| 3 |
972XX |
8 |
Washer, 5/16" |
| 4 |
570XX |
1 |
Gasket, End Cap |
| 5 |
911XX |
2 |
Seal, Output |
| 6 |
440XX |
2 |
Cup, Bearing, Tapered |
| 7 |
370XX |
2 |
Cone, Bearing, Tapered |
| 8 |
918XX |
1 |
Spacer |
| 9 |
902XX |
1 |
Shaft, Output |
| 10 |
720XX |
1 |
Key |
| 11 |
600XX |
1 |
Gear, Worm |
| 12 |
908XX |
** |
Shim |
| 13 |
918XX |
1 |
Spacer |
| 14 |
670XX |
1 |
Housing |
| 15 |
890XX |
4 |
Plug, 3/8" |
| 16 |
170XX |
1 |
Bearing, Ball |
| 17 |
902XX |
1 |
Worm |
| |
902XX |
1 |
Worm |
| 18 |
720XX |
1 |
Key |
| 19 |
170XX |
1 |
Bearing, Ball |
| 20 |
898XX |
1 |
Ring, Retainer |
| 21 |
911XX |
1 |
Seal, Input |
| 22 |
570XX |
1 |
Gasket |
| 23 |
570XX |
1 |
Gasket |
| 24 |
906XX |
1 |
Shield |
| 25 |
270XX |
1 |
Cap, Top |
| 26* |
420136 |
1 |
Coupler, Half, Keyed |
| 27* |
69010 |
1 |
Coupler, Spider Insert |
| 28* |
420136 |
1 |
Coupler, Half, Keyed |
| 29* |
420273 |
1 |
Coupling Assembly, Kit (Items 26, 27, & 28) |
** As required.
|
|
