RainTEC Center Pivot Components

Home > Products > Sprinklers > Drops >
Low Pressure Drop Systems for Center Pivots

Save on pumping costs and keep more water where it’s needed with drop tubes made by Nebraska Irrigation, Inc. Placement of sprinklers below the truss avoids evaporation loss, wind drift, and distortion of water pattern. Many low pressure drop configurations are available.
Please ask our sales department for suggestions concerning placement and available options for different soil, crop, and climate conditions.

Low Pressure Drop Systems for Center Pivots

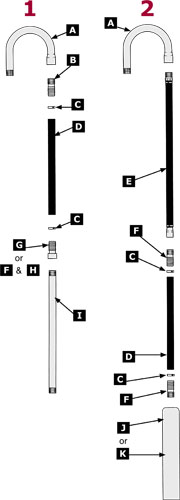

Two of Many Available Drop Configurations
Item
NI Part Number
Description
Drop Assy 1
Drop Assy 2
A
76501-1
76501-1
Goose Neck, Galvanized Loop, M x F
B
11031
N/A
Steel Male Adapter
C
330107
330107
Clamp
D
66022
66022
Flex Hose, 3/4", 250' roll
E
510XX
N/A
Flex Drop, M x FM (specify length)
F
11093
11093
Plastic Male Adapter
G
11025
N/A
Plastic Female Adapter
H
42505
N/A
Plastic Coupler
I
51074
N/A
Metal Weight, approx. 30"
J
N/A
51054-XX
Plastic Slip Weight
K
N/A
51092-XX
Plastic Threaded Weight


"X" indicates a variety of part numbers are available.

For additional information on any individual item, click on its description.









Senninger Pivot-Master® Irrigation Products
Selection Chart.
Nelson 3000 Series Pivot Products
Selection Chart.
Sprinkler Chart Data Form
For ordering Sprinkler Packages.
