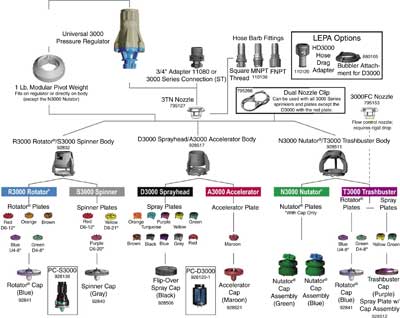

Nelson 3000 Series Pivot Products



Click to enlarge

Nelson Sprays Selection Chart
Product * Nozzle Type Operating Range Application Rate Mounting Relative Throw Distance **
Rotator
R3000

3TN 15-50 psi
(1-3.4 bar)
Low Up Top or On Drops 50'-70'
(15.2-21.3m)
Spinner
S3000

3TN 10-20 psi
(.7-1.4 bar)
Low-Medium On Drops 42'-54'(12.8-16.5m)
Spray Head
D3000

3TN 6-40 psi
(.41-2.8 bar)
High Up Top or On Drops 16'-40'
(4.9-12.2m)
Accelerator
A3000

3TN 10-15 psi
(.7-1 bar)
Medium On Drops 30'-46'
(9.1-14.6m)
Nutator
N3000
3TN 10-15 psi
(.7-1 bar)
Low-Medium On Drops*
(flex hose)
44'-52'
(13.4-14.6M)
Trash-Buster
T3000

3TN or 3000 FC Depends on sprinkler selection Low-High Up Top or On Drops Depends on sprinkler selection

* Careful selection of pressure and sprinkler configuration must be taken into account to optimize droplet size and other performance characteristics.
** Throw Distance varies with pressure, nozzle size, mounting height, and hydraulic conditions.

For your convience when ordering sprinkler packages, use the handy Sprinkler Chart Data Form. >> Click Here to view.





Flow Chart
For Nelson 3TN Nozzle System.
Accessories
For Nelson 3000 Series Pivot Products.
Nelson Pressure Regulators
Blue-Top & Blue-Top ST Models.
Gauges
Pressure Gauges.
Drops
Configurations, Components, etc.
Sprinkler Chart Data Form
For ordering Sprinkler Packages.
